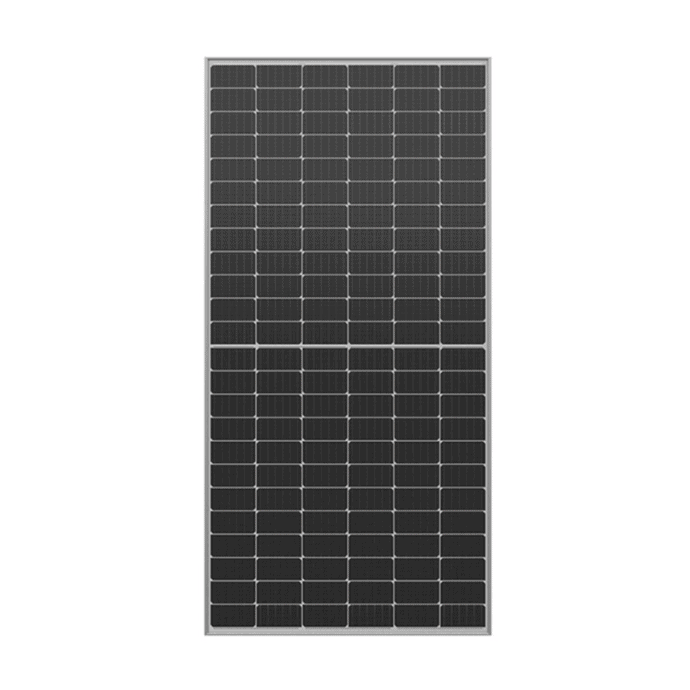

Q CELLS 480W Solar Module 78/156 Half Cell

Categories

Monofacial
Solar Panels
SKU: Q-CELLS DUO XL-G10.3

Click the button below to request a quote. We’ll automatically know which product you’re inquiring about. If you’re interested in purchasing more than one, please specify the quantity in the comments section.

  • Breaking the 21% Efficiency Barrier
    • The Q.PEAK DUO Z monocrystalline solar module has an excellent efficiency of up to 21.6 %.
  • Low Electricity Generation Costs
    • Higher yield per surface area, lower BOS costs and up to 80 watts more module power than standard 144 half-cell modules.
  • Enduring High Performance
    • Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality
  • Extreme Weather Rating
    • High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (3000 Pa).
  • State of the Art Module Technology
    • Q.ANTUM DUO combines cutting edge cell separation and innovative 12-busbar design with Q.ANTUM Technology.

DatasheetQ CELLS 480W DUO XL-G10.3 Datasheet
ManualQ CELLS 480W DUO XL-G10.3 Installation Manual
WarrantyQ CELLS 480W DUO XL-G10.3 Warranty

SKUQ-CELLS DUO XL-G10.3
ManufacturerQ Cells
BrandQ.Peak DUO
Number of cells156 (78)
Frame ColourSilver
Backsheet ColourWhite
Maximum Power (Pmax)480 W
Open Circuit Voltage (Voc)53.61 V
Short Circuit Current (lsc)11.26A
Voltage at Maximum Power (Vmp)44.81 V
Current at Maximum Power (lmp)10.71 A
Peak Efficiency21.6 %
Weight26 kg / 57.3 lbs
Dimensions87.2 x 41.1 x 1.4 in
Pallet29 modules
Warranty12 Years

  • Free local pickup at locations across Canada
  • Shipping is available Canada wide
  • Shipping calculated at checkout
